Foot volume Assembly
Alpha Librae
Mount the hold, then the volume.
A foot hold bolts to the volume, the volume screws to your wall. Six steps, in order.

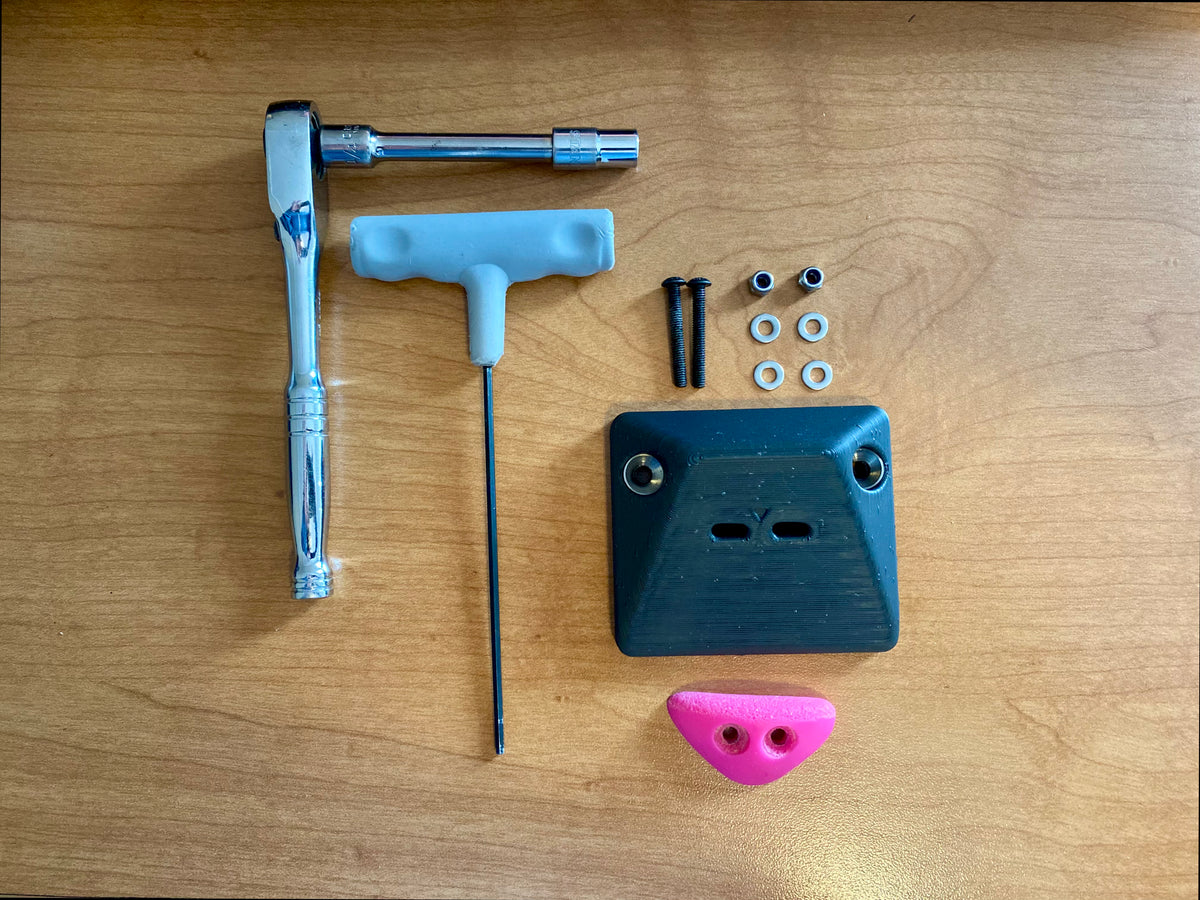

Step 01 / 06
Lay the parts out
Check you have everything before you start. Each volume takes two bolts, two cap nuts and four washers.
- 2 bolts
- 2 cap nuts
- 4 washers
- 2.5mm allen wrench
- 7mm socket
1 of 6

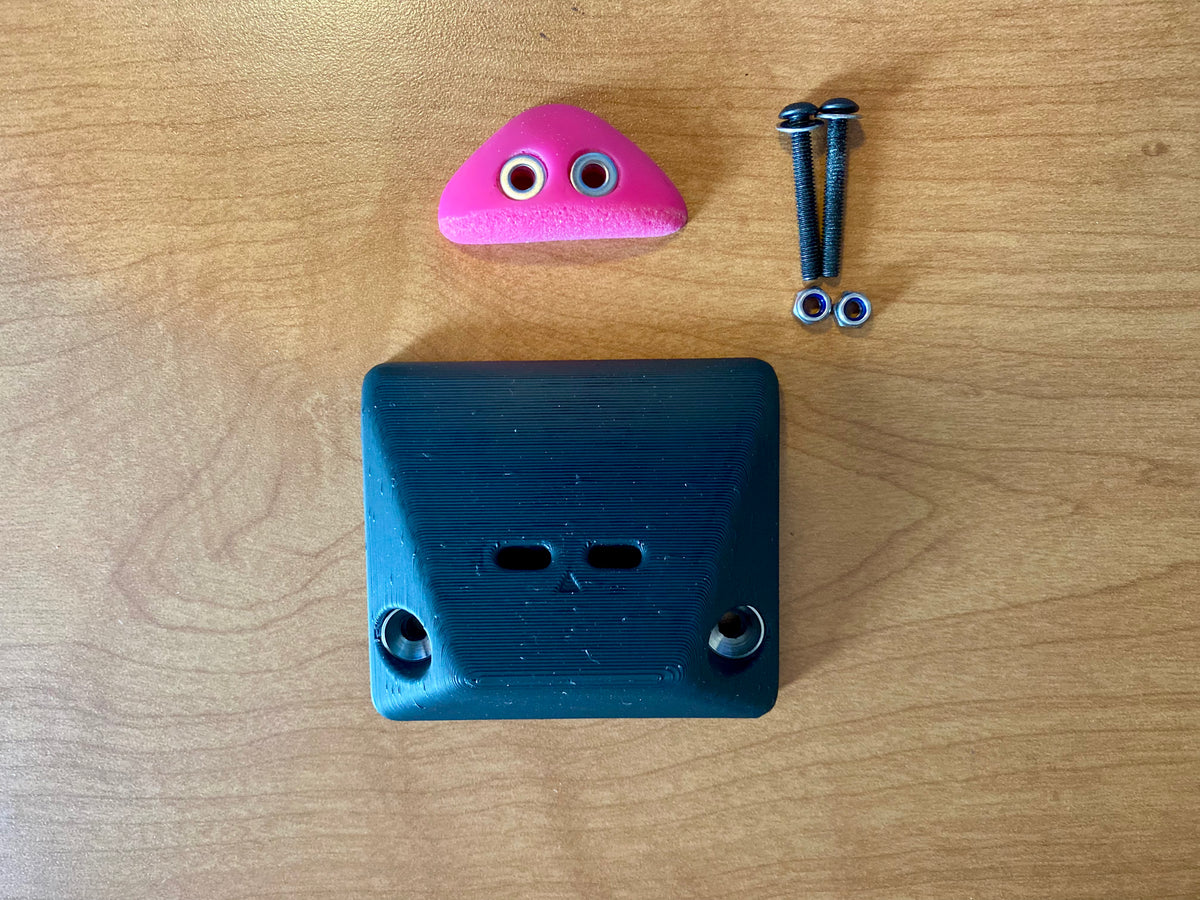

Step 02 / 06
Washers onto the foot hold
Using one of our foot holds, drop the washers onto the hold first.
2 of 6

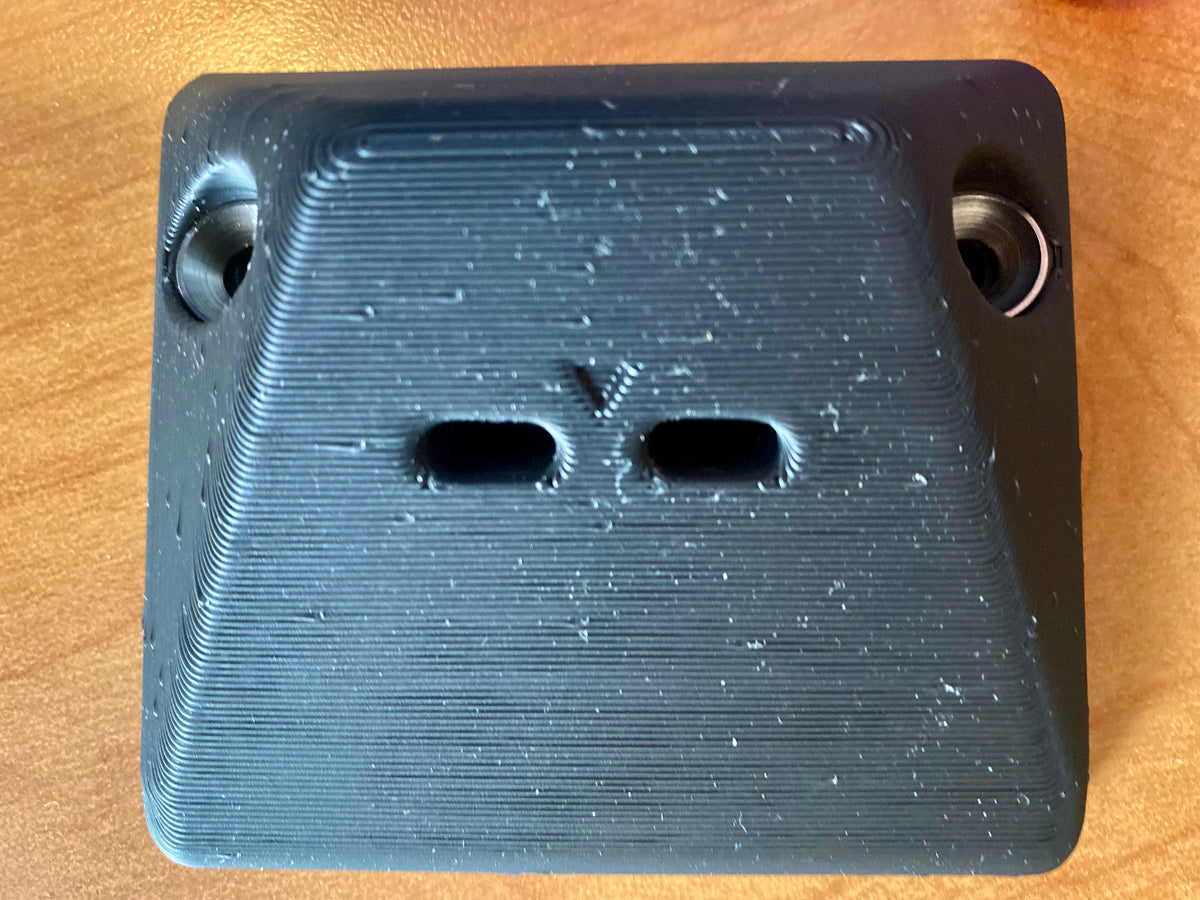

Step 03 / 06
Find the arrow
A small arrow on the volume marks up. The stepping surface faces that way.
3 of 6

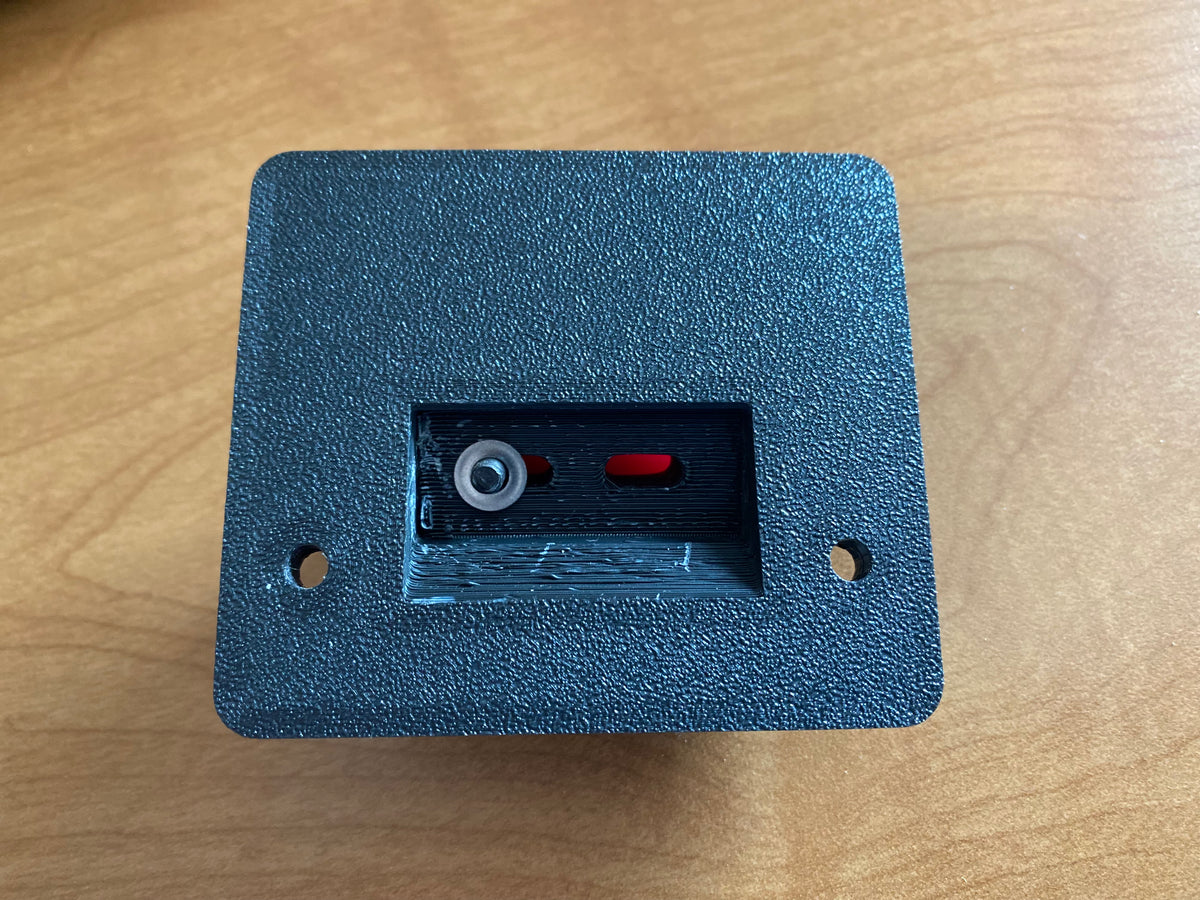

Step 04 / 06
Run the bolts through
Push a bolt through, then seat a washer on the far end.
4 of 6

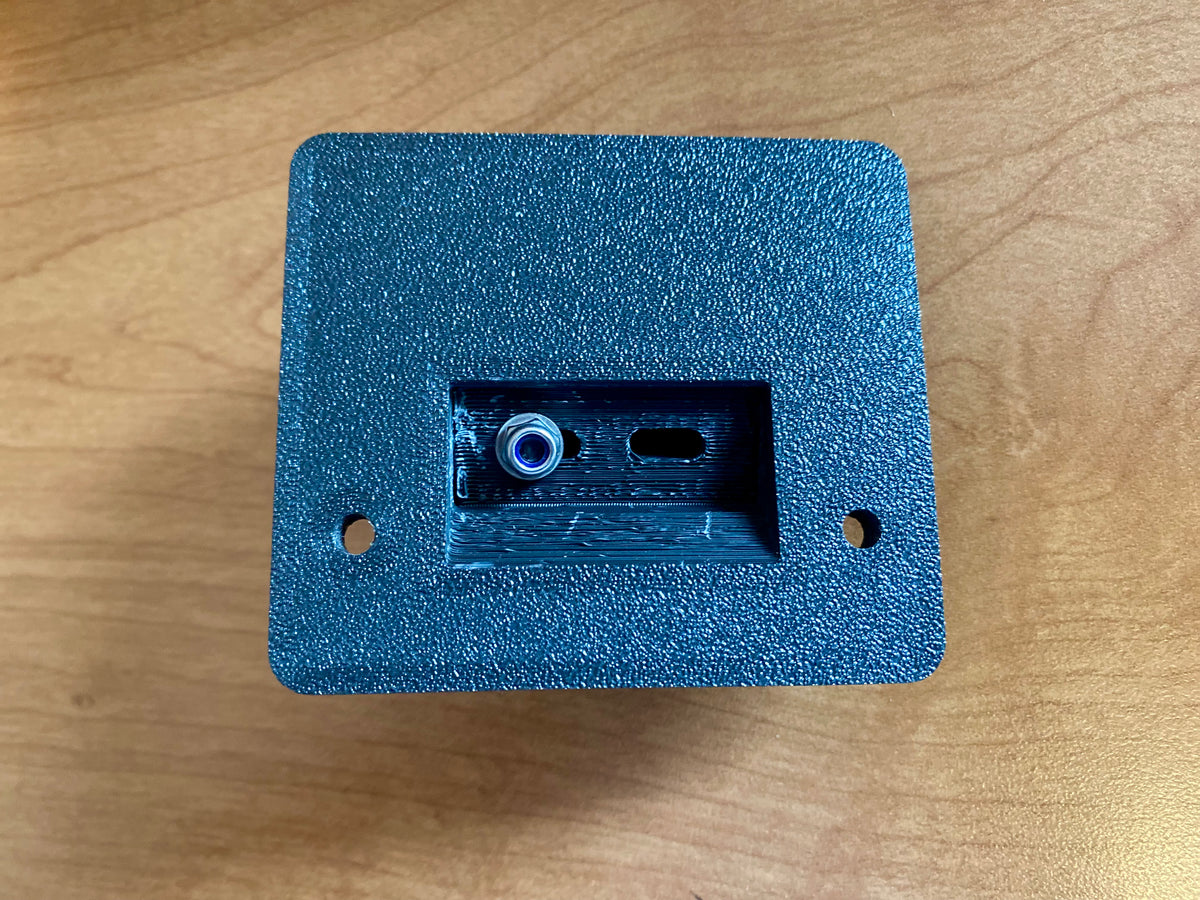

Step 05 / 06
Finger-tighten the cap nuts
Cap nut on, finger tight. Repeat on the other side.
Flip the volume over and centre the foot hold. Then go back and tighten.
5 of 6

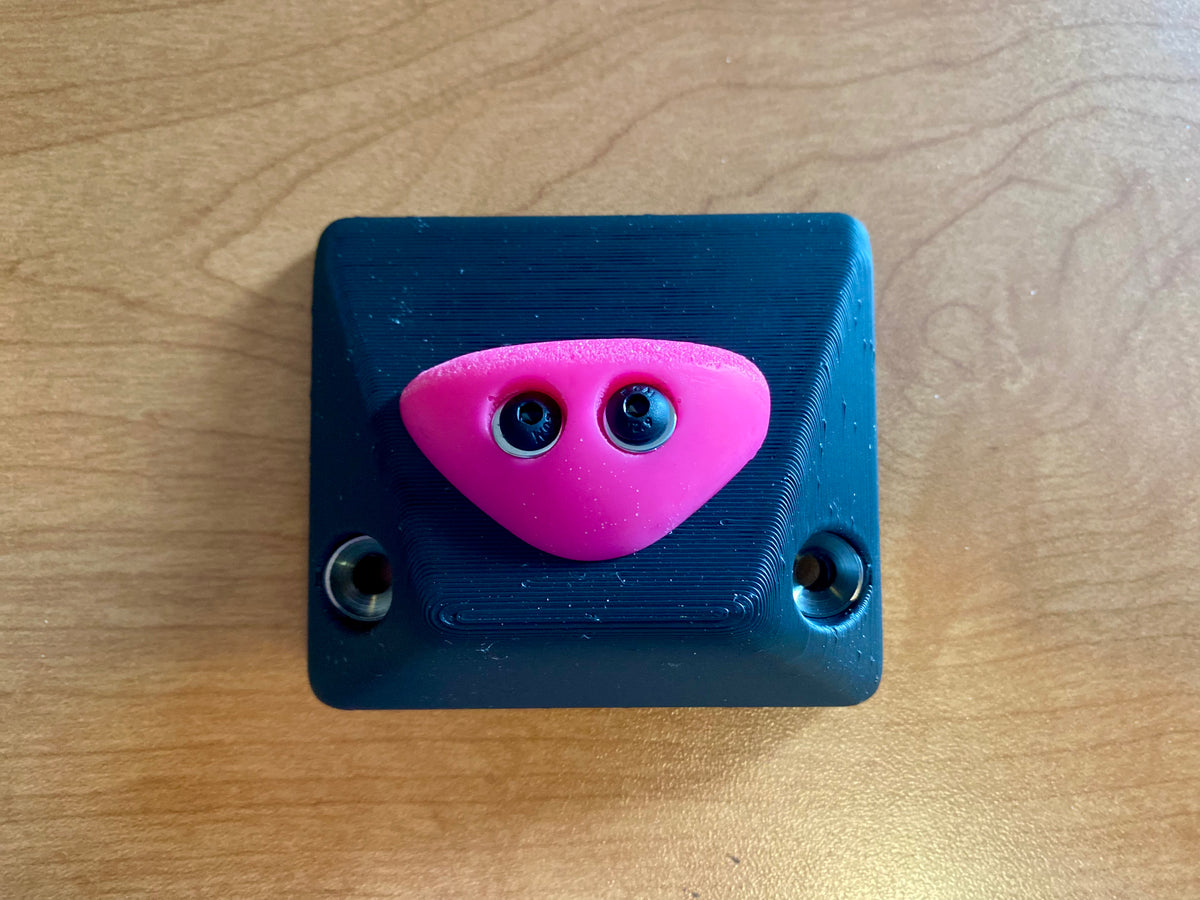

Step 06 / 06
Mount it and climb
Screw the volume to your wall and get on it.
6 of 6
